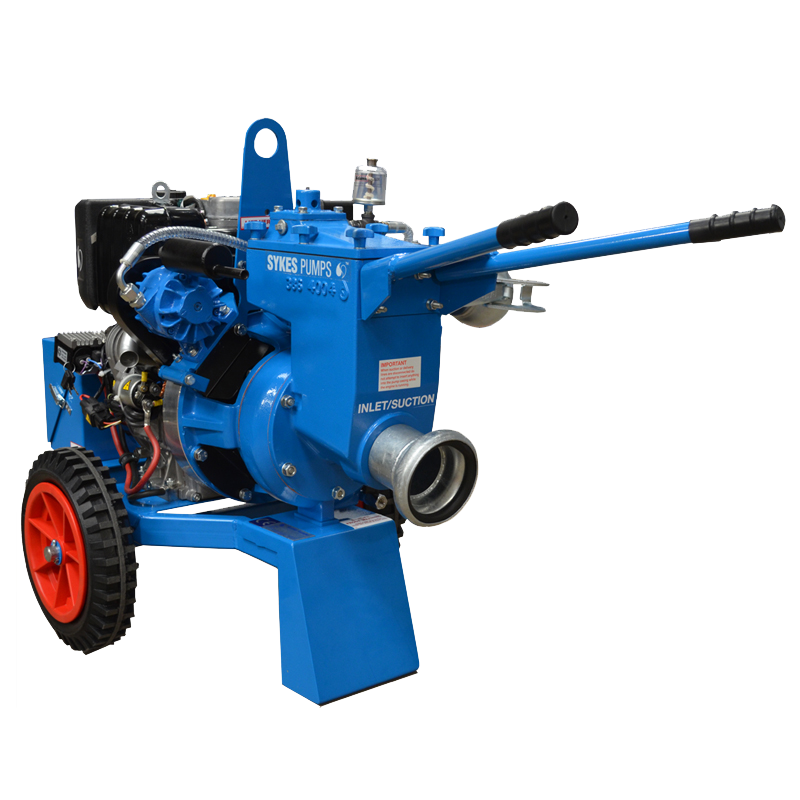

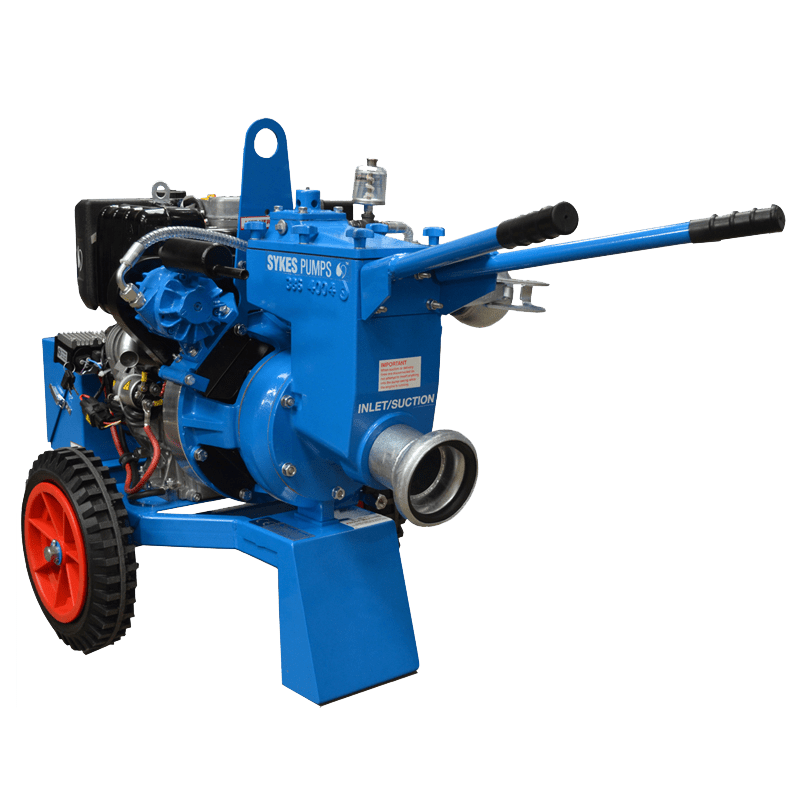

You are here: Home > Pump Hire > General Purpose Pumps > MINIVAC eco General Purpose Pump
  • Features / Environments
  • Specifications
  • Accessories
Features
  • Hard wearing cast Iron parts
  • Hours of unattended operation
  • Corrosion resistant
  • Automatic priming and re-priming
  • Available as a 2 wheeled trailer
  • Fuel efficient engine
  • Shaft seals can be changed in minutes
  • 8 hour running on one tank of fuel?
  • Compact and manoeuvrable
  • Available as skid mounted
  • Electric motor option
  • Available as a high speed road trailer
  • Electric start
  • Choice of engines
  • Ease of maintenance
  • Solids handling up to 28 millimetres
Environments
  • Environmental
  • Emergency Pumping Services
  • Docks, Ports and Harbours
  • Refineries
  • Water and Waste Treatment
  • Local Authorities
  • Film Production and Events
  • Offshore and Float Outs
  • Quarries and Mines
  • Building and Construction
  • Manufacture and Industry
  • Power Stations
  • Tunnelling
Weight (kg)
180kg with fuel / 168kg without fuel
Dimension
(LxWxH)mm: 1350 x 600 x 840, typical length including tow bar where applicable 1350mm
Noise level
@1m= 87-94 dBA / @7m= 70-77 dBA
Performance
Max Head: 28m, Max Flow: 15l/s, Max Solids: 28mm
Fuel Tank Capacity
5 litres. Max 8 hours running.
Fuel Consumption
Full Load @ 2000 rpm: 0.71 litres/hour / Energy efficient duty point @ 2200 rpm: 0.58 litres/hour
Pipe Connections
Suction: 3” BSP female thread / Discharge: 2” BSP female thread / Bauer couplings option 2” or 3”
Health and Safety
Ear Defenders, Gloves, Boots, safety footwear, Protective clothing, Noise power level Lwa: 122 dB
  • "2" SPLIT INTAKE
  • 2" 20FT W/A SUCTION HOSE BAUER
  • 2" X 6M HELIFLEX PVC BAUER HOSE
  • 2" LAYFLAT HOSE PER METRE
  • 2" BLUE LAYFLAT X 25M CW BAUERS
  • 2" BLUE LAYFLAT X 50M CW BAUERS
  • 2" 60* BEND
  • 2" GATEVALVE
  • 2" NON RETURN VALVE
  • RETAIL GAS OIL
  • 110L FUEL BUUGY
