GP 200M General Purpose Pump

The GP 200M is the general purpose industry standard for Construction, Utilities and Civil Engineering. Specifically designed for arduous applications, the GP 200M power comes from its 65kw water cooled diesel engine and incorporates the unique Khansaheb Sykes Univac vacuum system. This enables the pump to prime and reprime fully automatically from dry. All Khansaheb Sykes General Purpose pumps are available with alternative engines, motors and chassis configurations.

00971 800 79537 Get A Quote

Please enter your details. Items with a * are required.

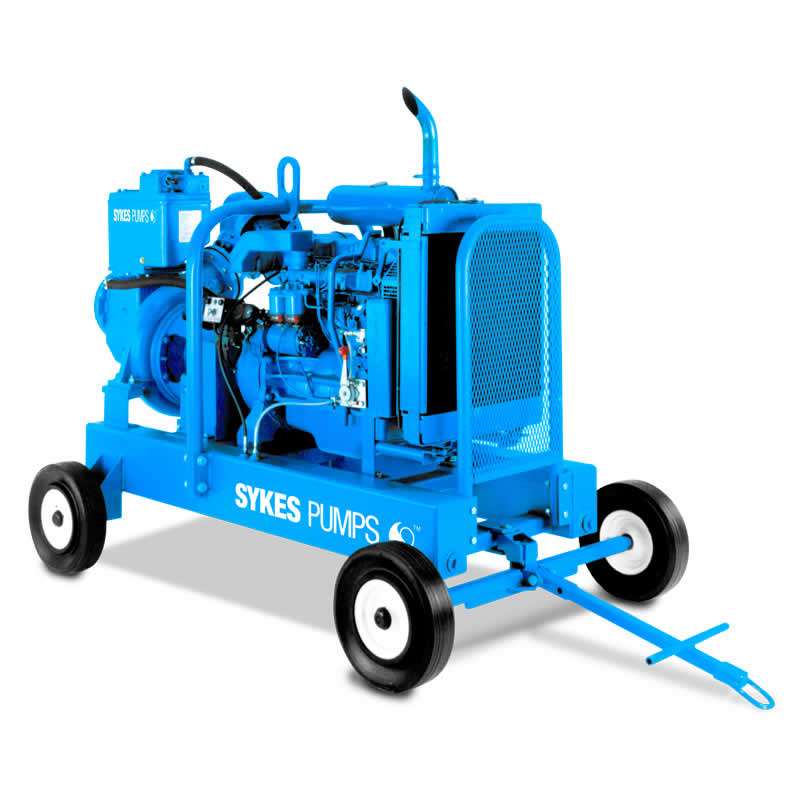

GP 200M General Purpose Pump Angle View Click image to Zoom

Features

  • Hard wearing cast Iron parts
  • Corrosion resistant
  • Available as a four wheeled trailer
  • Choice of engines
  • Electric motor option
  • Hours of unattended operation
  • Automatic priming and re-priming
  • Choice of engines
  • Choice of engines
  • Easy maintenance

Environments

  • Clean and dirty water
  • Over pumping
  • Heaviest Sludge
  • Site dewatering
  • Heaviest Slurry
  • Quarries
  • Waste water

Accessories

  • 8" INTAKE
  • 8" 3M W/A BAUER HOSE
  • 8" X 6M POLYTUBE BAUER DELIVERY
  • 8" 20FT STEEL PIPE
  • 8" 45* BAUER BEND
  • 8" 90* BEND
  • 8" GATEVALVE
  • 8" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • DRIP TRAY 2440MM X 1525MM
  • ROAD CROSSING C/W 8" PN16 FLANGES
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE
  • RETAIL GAS OIL

Specifications

Weight
1727 kg with fuel / 1570 kg without fuel
Dimension
(LxWxH)mm: 2630x1570x1809, typical length including tow bar 3310mm
Noise level
Typical noise level at 1m = 98 - 106 dBA, Typical noise level at 7m = 89 - 95 dBA
Performance
GP200 36 m / 138 l/s / 75 mm, GP200M 43 m / 161 l/s / 75 mm
Fuel Tank Capacity
183 litres. Max 24 hour with cleaning and flushing facilities
Fuel Consumption
Typical fuel consumption on full load @ 1800 rpm: 15.8 litres/hour
Chassis
4 wheel site trailer / high speed trailer/ Skid mounted
Pump Materials
Main pump: SG grade iron
Pipe Connections
Suction: 8" table D, Discharge: 8" table D, Bauer couplings option: 8"
Engine(Type / Power / Speed)
GP200 Lister CD4 / 52.8 kW / 1800 rpm, GP200M Iveco 8045SE / 65 kW / 1800 rpm
Prime System
Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 60 cfm/ Non Return Valve
Shaft Seal
Sykes patented vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring, Optional mechanical seal
Health and Safety
Ear Defenders, Gloves, Boots, safety footwear, Protective clothing, Noise power level Lwa: 122 dB
