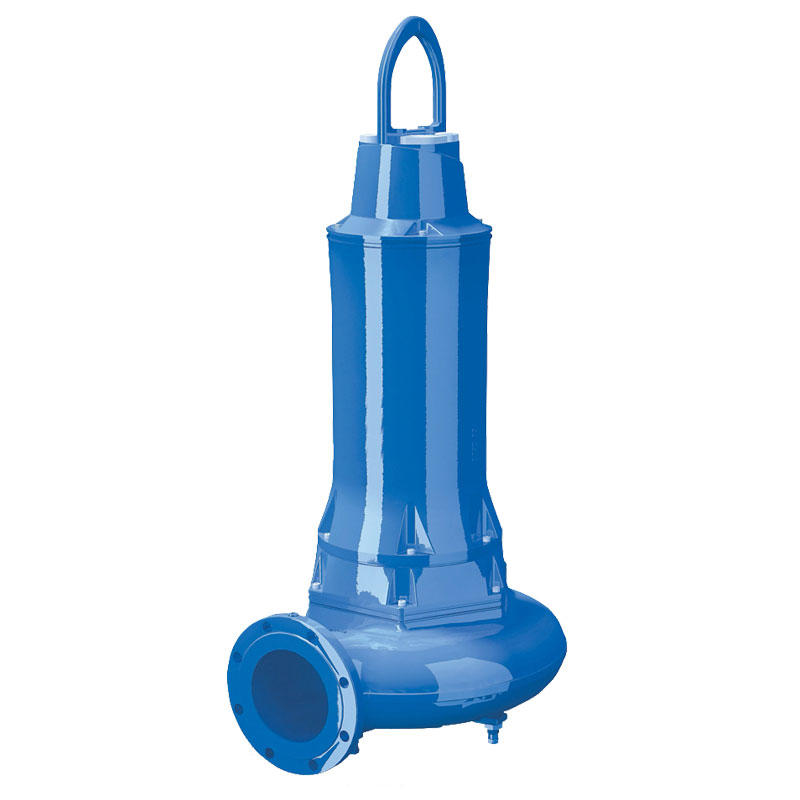

You are here: Home > Pump Hire > Submersible Wastewater > XFP301M CH2.473
  • Features / Environments
  • Specifications
  • Accessories
Features
  • Cast iron body
  • Cast Iron impeller
  • High wear resistance
  • Highly reliable
  • No vibration - smooth running
  • Built in motor temperature sensors
  • 12” Discharge
  • Standardized design for minimal service and maintenance
  • Premium Efficiency IE3 motor
  • Simple installation
  • 415V, 75W motor
  • Low noise and no fumes
  • Max Head 36 metres
  • Max Flow 430 litres/sec.
  • Available for use in Ex Zone2 environments
Environments
  • Bypass and over-pumping
  • Emergency Sewage pumping
  • Wastewater treatment sites
  • Wastewater pumping networks
  • Tunnelling
  • Flood restoration
  • Manufacturing and Industry
  • Industrial processes
  • Commercial premises
  • Food, fruit and Vegetable preparation processes
  • Agriculture
  • Utility industries
Weight (kg)
1470
Dimensions (mm)
Guide rail: 1955 x 1095
Free standing : 2155 x 1725
Motor Type (V)
415 (50Hz)
Motor Rating (kW)
75
Max Power Input (kW)
80
Running Current (Amps)
140
Discharge Spigots
12” Bauer
Cable termination
Tails, lugs
Cable length
20m
  • VARIABLE SPEED DRIVE PANEL 6841075
  • 12" W/A SUCTION HOSE X 6MTS
  • 12" 10FT STEEL PIPE
  • 12" FLANGED HIGH PRESSURE HOSE X 6MTS
  • 12" 45* BAUER BEND
  • 12" 90* BAUER BEND
  • 12" FLANGED 45* BEND
  • 12" FLANGED 90* BEND
  • 12" GATEVALVE
  • 12" NON RETURN VALVE
