SUPER WISPASET 200 Super Silenced Pump

The Super Wispaset 200 pump will deliver a flow rate of 580m³ per hour and is one of the quietest pumps on the market with a maximum noise level of 65dBA @ 7m. The Super Wispaset 200's most innovative feature is its optional Telemetry, allowing remote monitoring, removing the need for unnecessary and costly visits by engineers.

00971 800 79537 Get A Quote

Please enter your details. Items with a * are required.

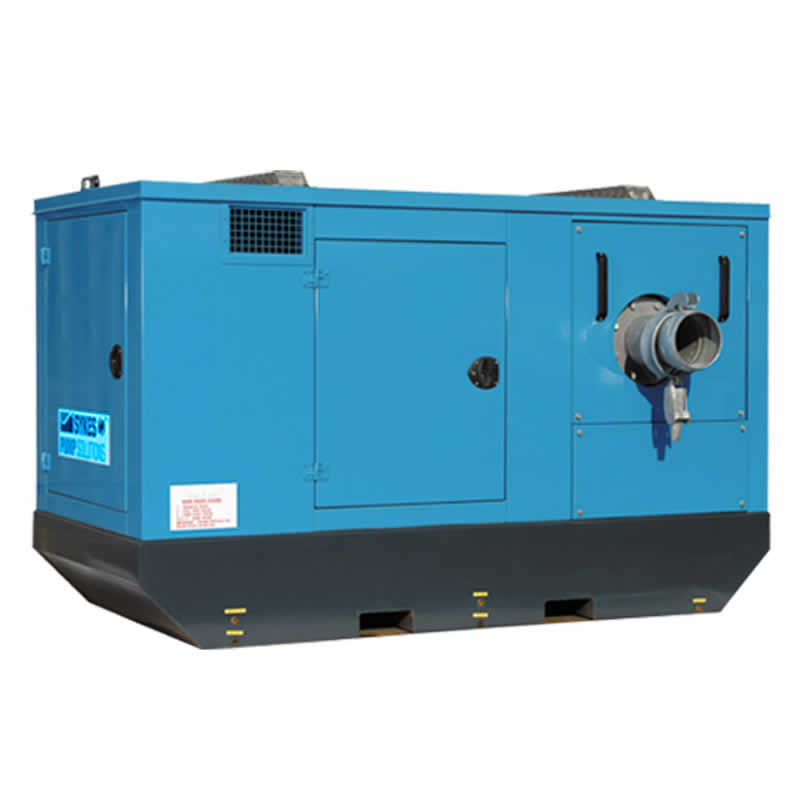

SUPER WISPASET 200 Super Silenced Pump Angle View Click image to Zoom

Features

  • Reduced typical noise levels 66 dBA @ 7m
  • Oil pressure shut down
  • Optional Telemetry
  • Lifting eye security
  • Low cost operation
  • Oil mist filter
  • 24 hour running
  • Optional high level bund alarm
  • Stackable (optional)
  • Optional low fuel warning
  • Skid and fast tow units
  • Temperature shut down
  • Engine options

Environments

  • Clean and dirty water
  • Emergency sewer repairs
  • Sludge
  • Utilities
  • Slurry
  • Quarries
  • Over pumping
  • Civil engineering
  • Site dewatering
  • Waste water

Accessories

  • 8" INTAKE
  • 8" 3M W/A BAUER HOSE
  • 8" X 6M POLYTUBE BAUER DELIVERY
  • 8" 20FT STEEL PIPE
  • 8" 45* BAUER BEND
  • 8" 90* BEND
  • 8" GATEVALVE
  • 8" NON RETURN VALVE
  • SETTLEMENT TANK
  • SYKES SILT AWAY
  • ROAD CROSSING C/W 8" PN16 FLANGES
  • BUNDED FUEL TANK 2800 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE
  • RETAIL GAS OIL

Specifications

Weight
2390 kg with fuel, 2200 kg without fuel
Dimension
(LxWxH)mm: 2610x1250x1535
Control
Optional Auto stop start/ Optional telematery/ Optional shutdowns
Noise level
Typical noise level at 7m = 65 dBA
Performance
Max head: 43 m / Max flow: 161 l/s / Max solid: 75 mm
Fuel Tank Capacity
207 litres. Max 24h running
Fuel Consumption
Typical fuel consumption on full load @ 1800 rpm: 17 litres/hour
Chassis
High speed trailer / Skid mounted / Fork Lift slots / Fully Bunded
Canopy
Metalised soundabsorbing Canopy / Zintec coating on all surfaces
Pump Materials
Main pump: SG grade iron
Pipe Connections
Suction: 8" Table D, Discharge: 8" Table D, Bauer couplings option
Engine(Type / Power / Speed)
Iveco 8045SE / 62 kW / 1800 rpm, Iveco A800N45MSS / 62 kW / 1800 rpm
Prime System
Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 25 cfm/ Non Return Valve
Shaft Seal
Sykes patented Vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on
Health and Safety
Gloves / Boots/safety footwear / Protective clothing / Noise power level Lwa: 90 dB
