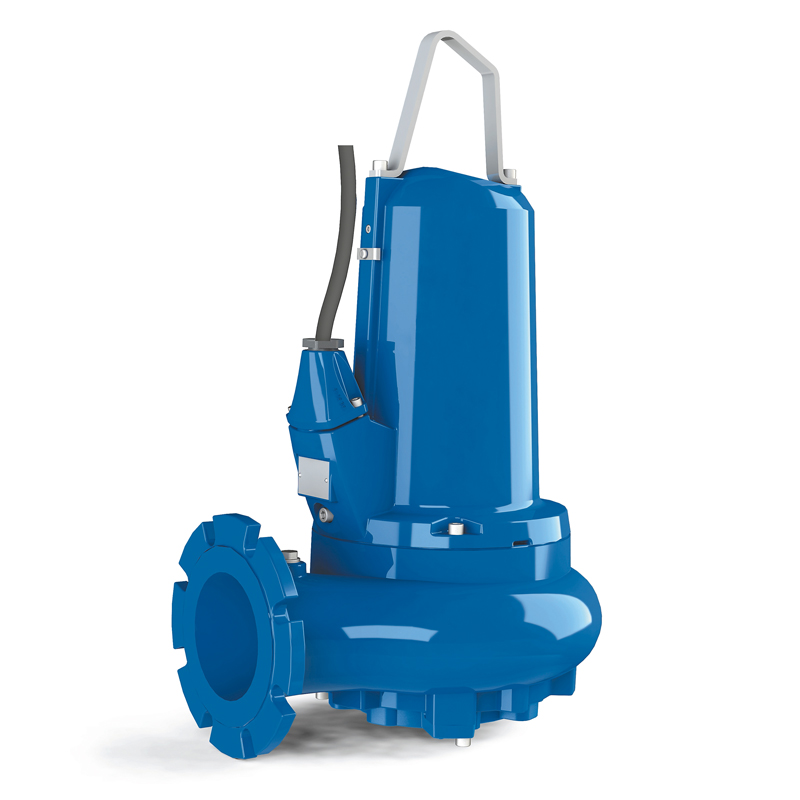

You are here: Home > Pump Hire > Submersible Wastewater > XFP100E CB1.3
  • Features / Environments
  • Specifications
  • Accessories
Features
  • Cast iron body
  • Cast Iron impeller
  • High wear resistance
  • Highly reliable
  • No vibration - smooth running
  • Built in motor temperature sensors
  • 4” Discharge
  • Standardized design for minimal service and maintenance
  • Premium Efficiency IE3 motor
  • Simple installation
  • Plug and pump
  • 415V, 6kW motor
  • Low noise and no fumes
  • Max Head 20 metres
  • Max Flow 45 litres/sec.
  • Available for use in Ex Zone2 environments
Environments
  • Building and Construction
  • Bypass and over-pumping
  • Emergency Sewage pumping
  • Wastewater treatment sites
  • Wastewater pumping networks
  • Tunnelling
  • Flood restoration
  • Manufacturing and Industry
  • Industrial processes
  • Commercial premises
  • Food, fruit and Vegetable preparation processes
  • Agriculture
  • Utility industries
Weight (kg)
180
Dimensions (mm)
Guide rail: 765 x 385 (min.)/510 (max.)
Free standing : 835 x 490 (min.)/835 (max.)
Motor Type (V)
415 (50Hz)
Motor Rating (kW)
6
Max Power Input (kW)
6.7
Running Current (Amps)
13.6
Discharge Spigots
4”
  • VARIABLE PANEL 1KW TO 15KW
  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6M HELIFLEX PVC BAUER
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* BAUER BEND
  • 4" 90* BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE
  • ROAD RAMP C/W 6" PN16 FLANGES
  • ROAD RAMP WIDE C/W 6" PN16 FLANGES
  • ROAD CROSSING C/W 8" PN16 FLANGES
