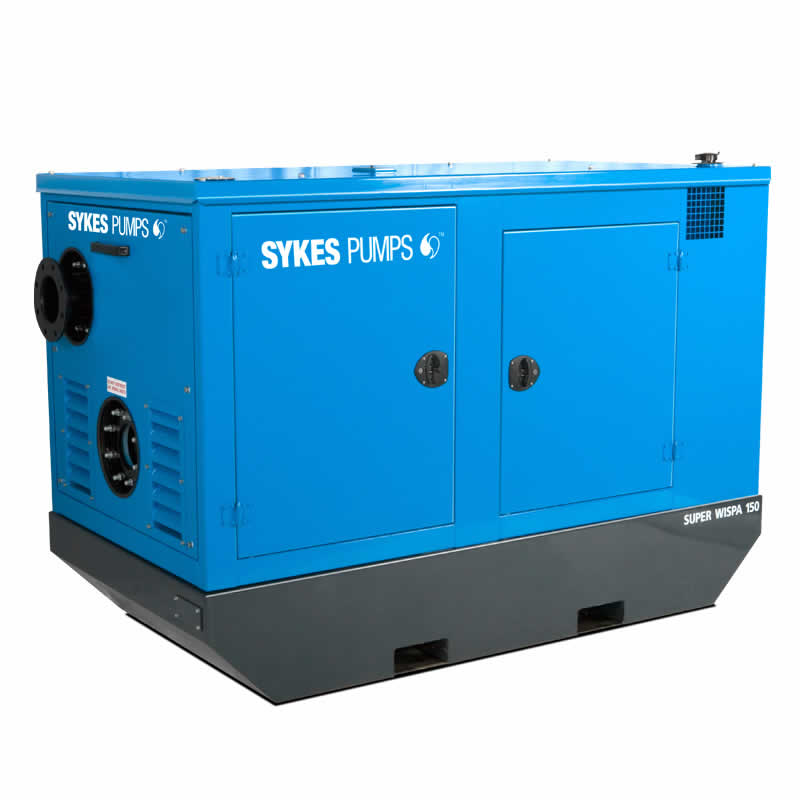

SUPER WISPASET 150 Super Silenced Pump

The Super Wispaset 150 pump, will deliver a flow rate of 324m³ per hour and is one of the quietest pumps on the market with a maximum noise level of 65dBA @ 7m. The Super Wispaset 150’s most innovative feature is its optional Telemetry, which allows remote monitoring, removing the need for unnecessary and costly visits by engineers.

Key Features

Feature

Reduced noise levels 65 dBA @ 7m

Oil pressure shut down

Optional Telemetry

Lifting eye security

Low cost operation

Oil mist filter

Optional Auto stop/start

24 hour running

Optional high level bund alarm

Stackable Option

Optional low fuel warning

Skid and fast tow units

Temperature shut down

Engine options

Product Specification

Weight :1990 kg with fuel / 1800 kg without fuel
Dimension (L x W x H) : 2310 x 1250 x 1535 mm
Control :Optional Auto stop start/ Optional telematery/ Optional shutdowns
Noise level :Typical noise level at 7m = 65 dBA
Performance :Max head: 38 m
Max flow: 90 l/s
Max solid: 52 mm
Fuel Tank Capacity :175 litres.
Max 24h running
Fuel Consumption :Typical fuel consumption on full load @ 1800 rpm: 9.8 litres/hour
Chassis :High speed trailer / Skid mounted / Fork Lift slots / Fully Bunded
Canopy :Metalised soundabsorbing Canopy / Zintec coating on all surfaces
Pump Materials :Main pump: SG grade iron
Pipe Connections :Suction: 6″ Table D, Discharge: 6″ Table D, Bauer Couplings Option
Engine(Type / Power / Speed) :Iveco 8035E / 31 kW / 1800 rpm,
Deutz / 35 kW / 1800 rpm
Prime System :Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 25 cfm/ Non Return Valve
Shaft Seal :Sykes patented Vacuum pressure seal,
Single ring of packing,
Spring loaded,
No adjustments necessary,
Easy repacking,
Chrome oxide coating on wear ring,
Optional mechanical seal
Health and Safety :Gloves / Boots/safety footwear / Protective clothing / Noise power level Lwa: 90 dB

Downloads

Accessories

6″ SPLIT INTAKE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ LAYFLAT HOSE PER METRE
6″ BLUE LAYFLAT X 25M CW BAUERS
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON RETURN VALVE
SETTLEMENT TANK
SYKES SILT AWAY
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE
RETAIL GAS OIL

Environments

Clean and dirty water
Emergency sewer repairs
Sludge
Utilities
Slurry
Quarries
Over pumping
Civil engineering
Site dewatering
Waste water
