MH 100 Medium Head

The MH 100 is designed for all general purpose medium head applications and is ideally suited for open cast and quarrying applications. The carefully designed high efficiency impeller gives excellent head and flow characteristics coupled with the ability to handle some solids and is perfect for the most arduous applications involving higher heads.

00971 800 79537 Get A Quote

Please enter your details. Items with a * are required.

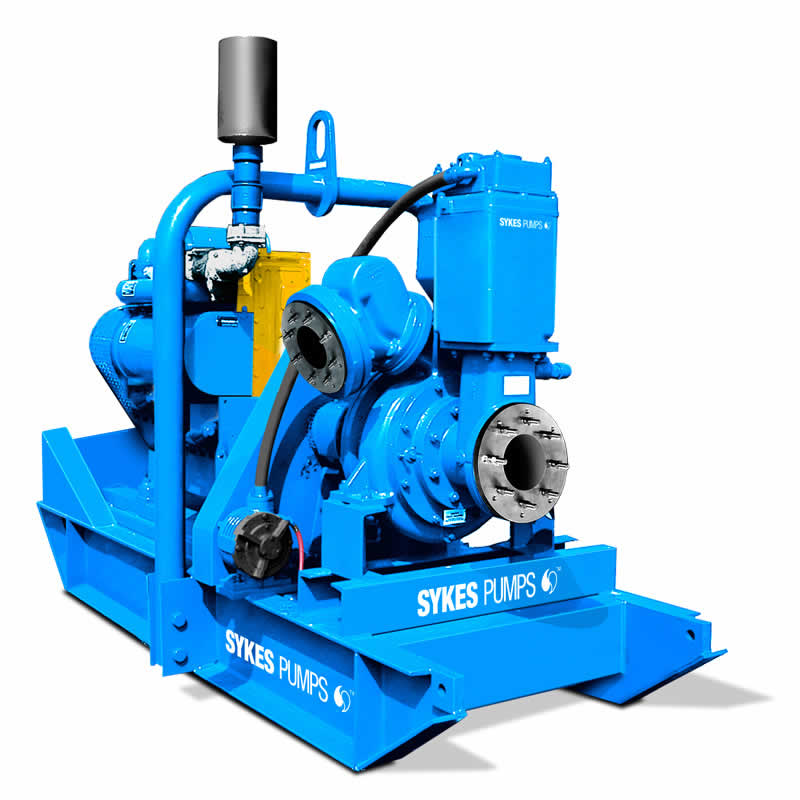

MH 100 Medium Head AnlgeView Click image to Zoom

Features

  • Hard wearing cast iron construction
  • Hours of unattended operation
  • Corrosion resistant
  • Single point filter
  • Stainless steel impeller
  • Skid mounted
  • Easy maintenance
  • Automatic priming and re-priming

Environments

  • Clean and dirty water
  • Open cast mines
  • Heavy Sludge
  • Construction
  • Heavy Slurry
  • Waste water
  • Quarries

Accessories

  • 4" X 3M W/A BAUER HOSE
  • 4" 20FT W/A SUCTION HOSE BAUER
  • 4" 20FT POLYTUBE
  • 4" X 6MTR STEEL BAUER PIPE
  • 4" 45* FLANGED NP16
  • 4" 90*PLANGED NP16 BEND
  • 4" GATEVALVE
  • 4" NON RETURN VALVE
  • 6" 10FT W/A SUCTION HOSE BAUER
  • 6" W/A SUCTION HOSE X 6MTS
  • RETAIL GAS OIL
  • BUNDED FUEL TANK 3000 LITRE
  • 5M HP FUEL LINE

Specifications

Weight
1966 kg with fuel / 1750 kg without fuel
Dimension
(LxWxH)mm: 2600x1100x1800
Noise level
Typical noise level at 1m dBA = 99 - 105, Typical noise level at 7m dBA = 88 - 94
Performance
Max head: 82 m, Max flow: 100 l/s, Max solid: 25 mm
Fuel Tank Capacity
Max 24h running/ Tank Capacity 250 litres/ Cleaning and Flushing Facility
Fuel Consumption
Typical fuel consumption on full load @ 2200 rpm: 17.1 lItres/hour
Chassis
Skid mounted
Pump Materials
Main pump: SG grade iron/ impeller: Stainless Steel
Pipe Connections
Suction: 6" Table D / Discharge: 4" Table D / Bauer Couplings Option
Engine(Type / Power / Speed)
Iveco 8045SE / 65 kW / 2000 rpm
Prime System
Flood Lubricated Rotary Vacuum Pump/ Nominal Displacement 25 cfm/ Non Return Valve
Shaft Seal
Sykes patented vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring
Health and Safety
Ear Defenders, Gloves, Boots, safety footwear, Protective clothing, Noise power level Lwa: 122 dB
