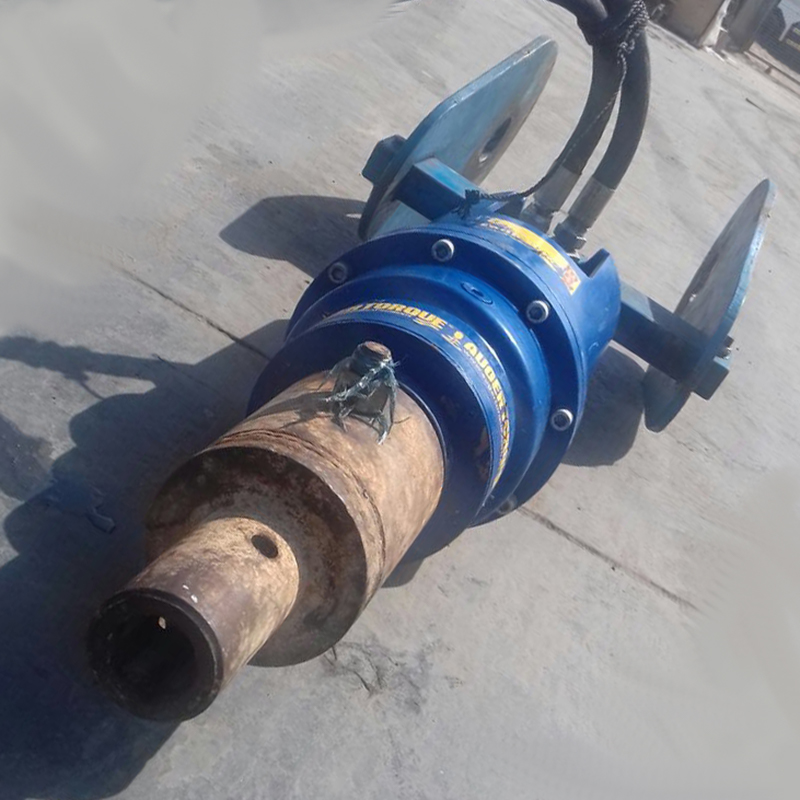

Drill Heads

Khansaheb Sykes offers drill heads for wellpoint drilling rigs, allowing to bore up to 7 metres deep in soft soil conditions and up to 5.2 metres in hard soil conditions. Manufactured from high grade steel, these drill heads are long-lasting and will penetrate even the hardest soils with ease.

Key Features

Feature

Manufactured from

high grade materials and precision engineered components

Designed to

withstand extreme working conditions

High grade synthetic gear oil for

extra protection and long service life

Planetary Gearbox

Torque amplified

High efficiency

Extreme durability

Product Specification

Model : Auger Torque 8000
Torque range : 2717 – 8152 Nm
Oil Pressure : 80 – 240 bar
Speed Range : 33 – 70 rpm
Size : 780mmx ø 269 mm
Weight : 116 kg
Drilling Depths : 7 m (Soft conditions)
Medium conditions : 6.6 m
Hard conditions : 5.2 m

Environments

Well boring
Screw pile installations
Foundation piles
Earth rod drilling
