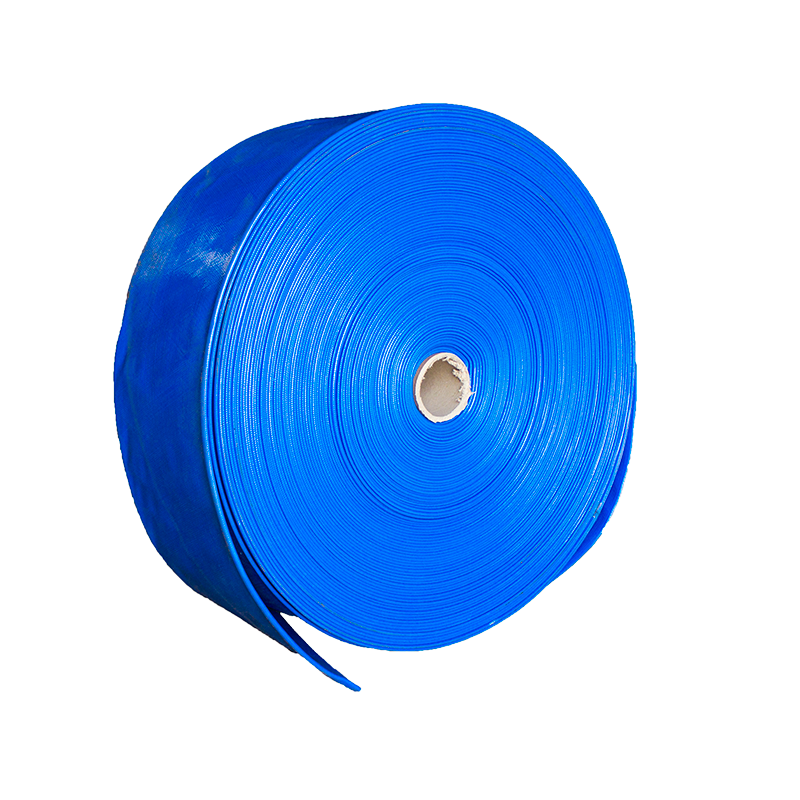

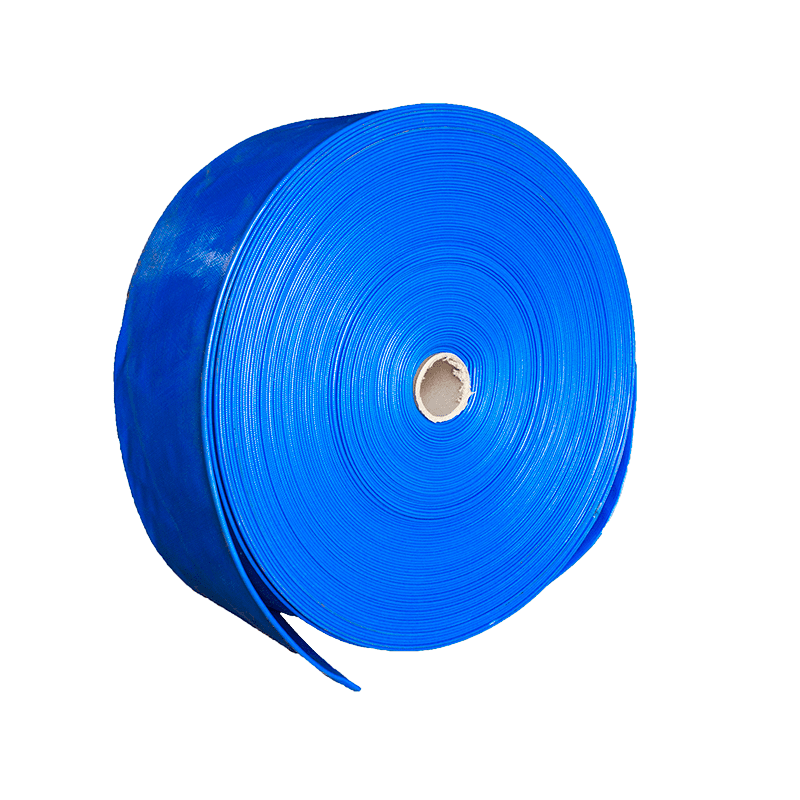

Layflat Hoses

Available in lengths of up to 100 metres when required, Khansaheb Sykes’ layflat hoses are available in several diameters. This type of hose is suitable for both clean and dirty water, but not sewage, and is designed for use only on the discharge side of a pump. Perfect for low pressure applications, our layflat hose comes with Bauer fittings and in 25-metre lengths as standard.

00971 800 79537 Get A Quote

Please enter your details. Items with a * are required.

Click image to Zoom

Features

  • Working pressure 3-9kgf/cm2
  • Inexpensive
  • Effortless mobility
  • Long lengths
  • Excellent pressure resistance

Environments

  • General water supply
  • Clean and dirty water
  • Site dewatering
  • Construction
  • Oil & gas
  • Over-pumping

Specifications

KH10

Size (inch) Inner Diameter (mm) Thickness (M) Working pressure (kg/cm2) Burst pressure (kg/cm2)
3" 77 1.5 3.6 8.8
4" 103 1.5 3.6 8.8
6" 153 2.0 3.0 8.0
8" 207 2.3 2.0 6.0

KH20

Size (inch) Inner Diameter (mm) Thickness (M) Working pressure (kg/cm2) Burst pressure (kg/cm2)
3" 77 1.8 5.0 15.0
4" 103 1.8 5.0 15.0
6" 153 2.0 4.0 12.0
8" 207 2.3 3.0 9.0
