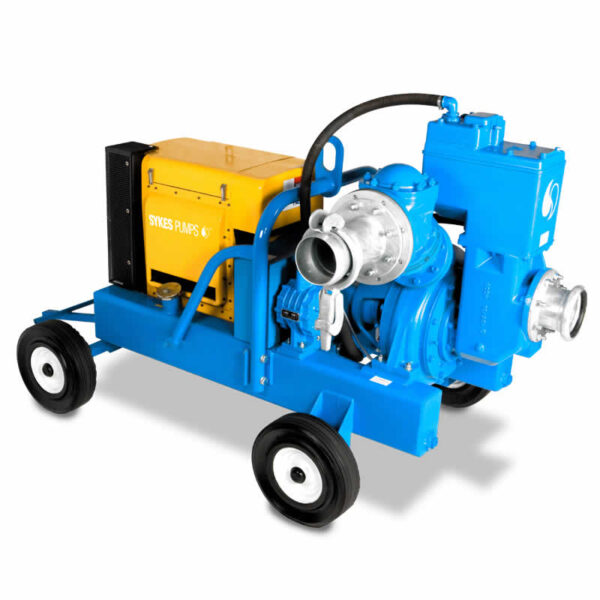

GP 100 M HATZ Silenced Pump

The GP 100 M is the general purpose industry standard for Constructers, Water utilities and local agencies. Used wherever there's a need for positive self – priming, the GP100 M incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 100 M, is powered by a 18.7kW Lister engine. All Sykes General Purpose pumps are available with alternative prime movers and mountings.

Key Features

Feature

Hard wearing cast

Iron parts

Easy to tow

Corrosion resistant

Hours of unattended

operation

Available as

A four wheeled site trailer

Automatic priming and re

priming

Available as

Skid mounted

Compact and manoeuvrable

Available as

High speed road trailer

Choice of engines

Easy maintenance

Electric motor option

Product Specification

Weight :Without fuel 998 kg, With fuel 1103 kg
Dimension :(LxWxH)mm: 1940x1450x1500, typical length including tow bar 2620mm
Noise level :Typical noise level at 1 m = 90 – 94 dBA, Typical noise level at 7 m = 73 – 77 dBA
Performance :Max head: 31 m / Max flow: 45 l/s / Max solid: 44 mm
Fuel Tank Capacity :69 or 122 litres. Max 24 hour with cleaning and flushing facilities
Fuel Consumption :Typical fuel consumption on full load @ 1800 rpm: 4.5 litres/hour
Chassis :4 wheel site trailer / skid mounted
Pump Materials :Main pump: SG grade iron
Pipe Connections :Suction: 4″ Table D, Discharge: 4″ Table D, Optional Bauer Couplings 4″
Engine(Type / Power / Speed) :Hatz 2L41C silenced diesel engine 18.7 kW at 1800 rpm
Prime System :Flood lubricated rotary vacuum pump of nominal displacement 25cfm
Shaft Seal :Sykes patented vacuum pressure seal, Single ring of packing, Spring loaded, No adjustments necessary, Easy repacking, Chrome oxide coating on wear ring, Optional mechanical seal
Health and Safety :Gloves, Boots/safety footwear, Protective clothing, Noise power level Lwa: 102 dB

Downloads

Environments

Clean and dirty water
Over pumping
Heavy Sludge
Site dewatering
Heavy Slurry
Quarries
Waste water
