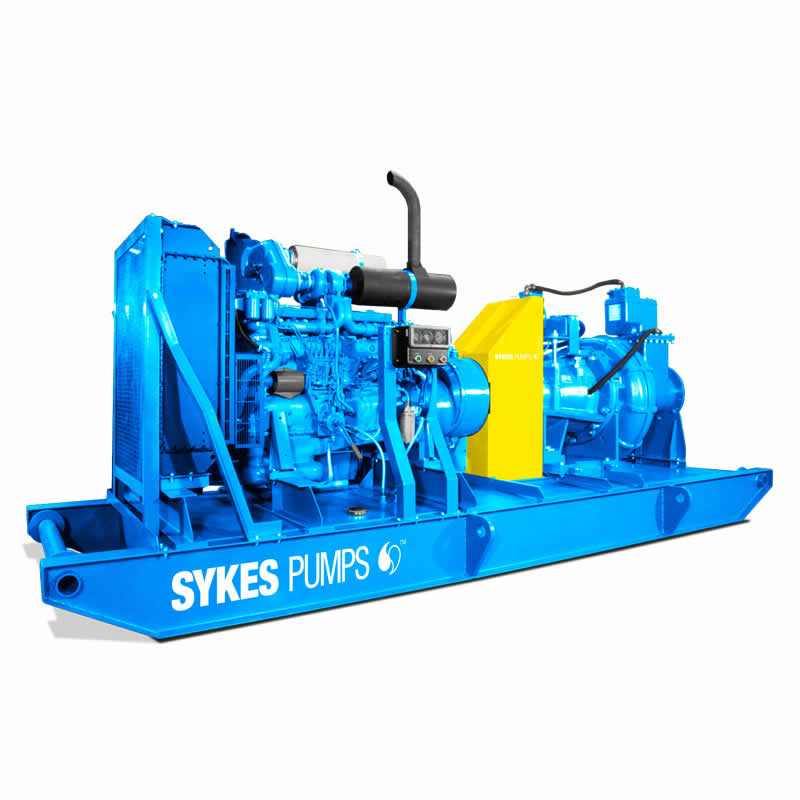

UVO 200/150F D70 Medium & High Head
The UVO 200/150F (D70) is specifically designed for the most arduous high head duties, and has a unique combination of features that provide improved performance, sustained high efficiency and total reliability. All wet end components are manufactured from high chrome iron alloy, providing both excellent abrasion and corrosion resistance.
Features
- High chrome iron pump parts
- Hours of unattended operation
- Corrosion resistant
- Choice of engines
- Easy maintenance
- Skid mounted
- Automatic priming and re-priming
Environments
- Clean and dirty water
- Tailing deposit
- Heavy Sludge
- Slurry transfer
- Abrasive Slurry
- Ash handling
- Pit dewatering
- Water boosting
- Pipeline filling
- Hydraulic sluicing
- Pipeline boosting
- Quarries
- Open cast mines
- Construction
- Waste water
Accessories
- 8" INTAKE
- 8" 3M W/A BAUER HOSE
- 8" FLANGED HIGH PRESSURE HOSE X 6MTS
- 6" FLANGED HIGH PRESSURE HOSE X 6MTS
- 6" 10FT STEEL PIPE
- 6" 20FT STEEL PIPE
- 6" FLANGED NP16 90* BEND
- 6" FLANGED NP16 GATEVALVE
- 6" NON RETURN VALVE
- RETAIL GAS OIL
- BUNDED FUEL TANK 3000 LITRE
- 5M HP FUEL LINE
Specifications
- Weight
- 8450 kg with fuel, 6320 kg without fuel
- Dimension
- (LxWxH)mm: 5330x2385x2260
- Performance
- Max head: 108, Max flow: 325 l/s, Max solid: 60 mm
- Fuel Tank Capacity
- Tank size on application, separate bunded tanks available.
- Fuel Consumption
- Typical fuel consumption on full load @ 1800 rpm: 99.9 litres/hour
- Chassis
- Skid mounted
- Pump Materials
- Main pump: High Chrome iron/ impeller: High Chrome iron
- Pipe Connections
- Suction: 8" Table D, Suction: 6" Table D, Bauer couplings option
- Engine(Type / Power / Speed)
- Volvo TWD1210P / 265 kW / 1800 rpm
- Prime System
- Flood Lubricated Rotary Vacuum Pump, Nominal Displacement 25cfm / Non Return Valve
- Shaft Seal
- No adjustments necessary, Easy repacking, Optional mechanical seal, Expeller aided vacuum seal, Two rings of packing, High Chrome sleeve
- Health and Safety
- Ear Defenders, Gloves, Boots, safety footwear, Protective clothing
